35cm Empire Lampshade Manufacturing Pack - 30 Units

These packs are designed for small manufacturers they include all the essential components to make
30 x Professional 35cm Empire Lampshades economically. They can be used as a Pendant (ceiling), or with a suitable Table or Floor Lamp.

Quality materials
The pack includes the 12mm Seamstick Double-sided tape for the lampshade seams, and also Tessa Tape for applying to the rings.
The Self Adhesive Lampshade panels are also supplied packed flat (not rolled up as in the kit boxes) so they are easier to use and assemble.
What size will my covering need to be?
Your covering needs to be 1140mm x 420mm to cover the self-adhesive panel supplied

What type of lamp holders and fittings will fit this lampshade?
The Frame is manufactured with a Duplex Shade Ring (110mm in diameter)
You need to purchase a Shade Carrier to connect with UK and Euro Lampholders.
The Frame can also be used with Harp & Finial Systems predominately used in the USA by using a Duplex Converting Kit.

Lampholder Types Using Shade Carriers
B22 Bayonet Cap  Lampholders (UK)
E14 Edison Screw Lampholders  (EU)
E27 Edison Screw Lampholders  (EU)
E26 Edison Screw Lampholders  (US)


Harp & Finial Fittings
If you wanted to use the frame with a Harp & Finial fittings, used mainly in the USA, then you can use our  Duplex Converting Kit
For more details  click here.

Shade Carriers & Spider Fittings
The Shade Carrier is regarded as the professional way to connect lampshades to lamp holders.
Lampshades that use this system have many advantages over fixed, fitted frames.

• The Lampshade lifts off the carrier with ease
• No need to touch the lamp holder to dust or change the bulb.
• The height between the Lampshade and Lampbase can be changed
•  Lampshade can be used as a Pendant using a Spider fitting
• Can be used with a Harp & Finial system using a converter

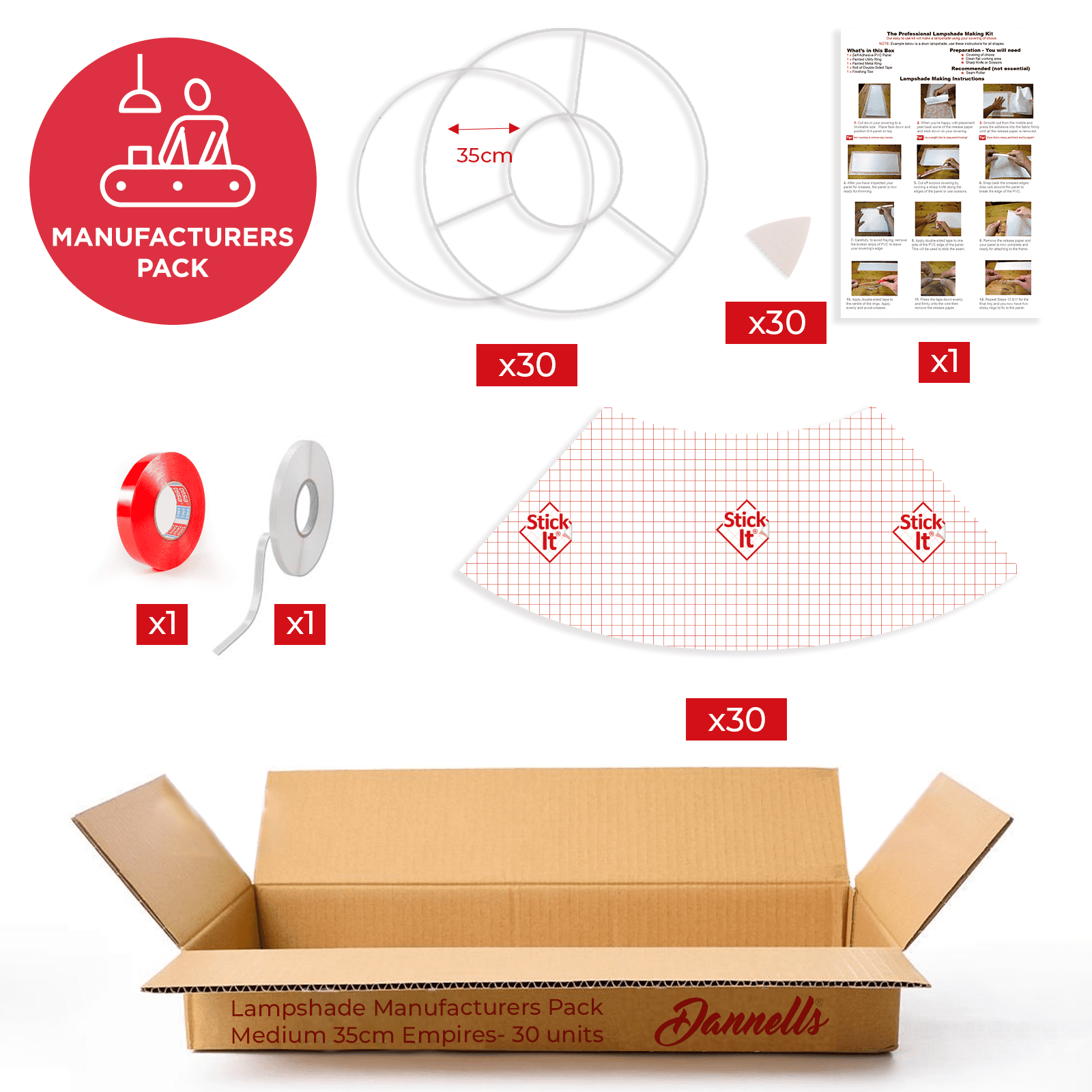

What's in the box
30 x 30cm Lampshade ring epoxy coated with Duplex fitting
30 x 35cm Lampshade ring epoxy coated
30 x Self-adhesive lampshade panel, includes 13mm kiss cut.
1 x 50 mtr roll 9mm Tessa self-adhesive tape
1 x 25mtr roll of 12mm Seamstick Double-sided tape (Apply to seams)
30 x Rolled Edge tool for finishing

Options
Some makers prefer to use Soft Furnishing Bond Tape or Tessa Tape for their seams instead of using Seamstick; therefore, you have the opportunity to exchange the tapes in options above.

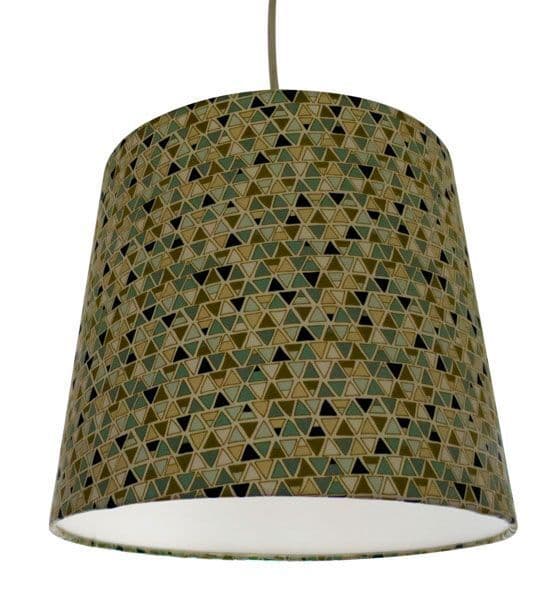

Lampshade Assembled Size
35cm Diameter Bottom Ring
30cm Diameter Top Ring
30cm High

Bulb Advice
We recommend the use of low energy bulbs with your lampshades. They use less energy and are cool to the touch, avoiding the problem of scorching shades and ceilings.

Testing
Our lampshade materials have been tested and passed the glow wire test carried out by the Lighting Association.
Contact us for test certificates.

IMPORTANT NOTES
When the lampshade is assembled, you will need a shade carrier or spider fitting to connect to your electrical fitting which can be purchased separately in the product options.

TABLE LAMP USE - Connect with a Shade Carrier
Use a 6" Shade Carrier to connect to your lamp base.

PENDANT CEILING USE - Connect with a Spider Fitting
Use a standard Spider fitting to connect the lampshade to the lamp holder on the ceiling rose.
